MOP Max Wrapper Module
[Jitter]

Collaboration diagram for MOP Max Wrapper Module:

Functions
t_jit_err	max_jit_classex_mop_wrap (void *mclass, void *jclass, long flags)
	Adds default methods and attributes to the MOP Max wrapper class.
t_jit_err	max_jit_classex_mop_mproc (void *mclass, void *jclass, void *mproc)
	Sets a custom matrix procedure for the MOP Max wrapper class.
t_jit_err	max_jit_mop_setup (void *x)
	Sets up necessary resources for MOP Max wrapper object.
t_jit_err	max_jit_mop_variable_addinputs (void *x, long c)
	Sets the number of inputs for a variable input MOP Max wrapper object.

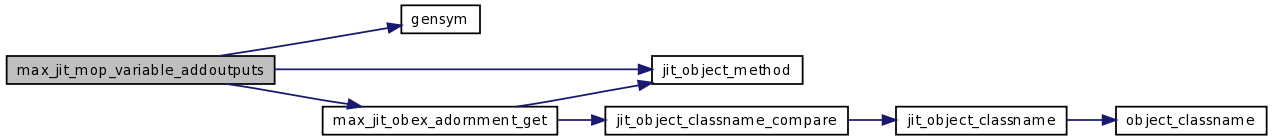

t_jit_err	max_jit_mop_variable_addoutputs (void *x, long c)
	Sets the number of outputs for a variable input MOP Max wrapper object.
t_jit_err	max_jit_mop_inputs (void *x)
	Creates input resources for a MOP Max wrapper object.
t_jit_err	max_jit_mop_outputs (void *x)
	Creates output resources for a MOP Max wrapper object.
t_jit_err	max_jit_mop_matrixout_new (void *x, long c)
	Creates matrix outlet for a MOP Max wrapper object.
t_jit_err	max_jit_mop_matrix_args (void *x, long argc, t_atom *argv)
	Process matrix arguments for a MOP Max wrapper object.
t_jit_err	max_jit_mop_jit_matrix (void *x, t_symbol *s, long argc, t_atom *argv)
	Default jit_matrix method for a MOP Max wrapper object.
t_jit_err	max_jit_mop_assist (void *x, void *b, long m, long a, char *s)
	Default assist method for a MOP Max wrapper object.
t_jit_err	max_jit_mop_bang (void *x)
	Default bang method for a MOP Max wrapper object.
t_jit_err	max_jit_mop_outputmatrix (void *x)
	Default outputmatrix method for a MOP Max wrapper object.
void	max_jit_mop_clear (void *x)
	Default clear method for a MOP Max wrapper object.
t_jit_err	max_jit_mop_notify (void *x, t_symbol *s, t_symbol *msg)
	Default notify method for a MOP Max wrapper object.
void	max_jit_mop_free (void *x)
	Frees additional resources used by a MOP Max wrapper object.
t_jit_err	max_jit_mop_adapt_matrix_all (void *x, void *y)
	Adapts all input and output matrices to matrix specified.
void *	max_jit_mop_get_io_by_name (void *x, t_symbol *s)
	Retrieves t_jit_mop_io object pointer by name.
void *	max_jit_mop_getinput (void *x, long c)
	Retrieves input t_jit_mop_io object pointer index.
void *	max_jit_mop_getoutput (void *x, long c)
	Retrieves output t_jit_mop_io object pointer index.
long	max_jit_mop_getoutputmode (void *x)
	Retrieves current MOP Max wrapper class output mode.
t_jit_err	max_jit_mop_setup_simple (void *x, void *o, long argc, t_atom *argv)
	Initializes default state and resources for MOP Max wrapper class.

---

Function Documentation

t_jit_err max_jit_classex_mop_mproc	(	void *	mclass,
		void *	jclass,
		void *	mproc
	)

Sets a custom matrix procedure for the MOP Max wrapper class.

Parameters:

	mclass	max jit classex pointer returned from max_jit_classex_setup
	jclass	t_jit_class pointer, typcially returned from jit_class_findbyname
	mproc	matrix procedure

Returns:

t_jit_err error code

Definition at line 342 of file max.jit.mop.c.

References jit_class_adornment_get(), and jit_object_method().

Here is the call graph for this function:

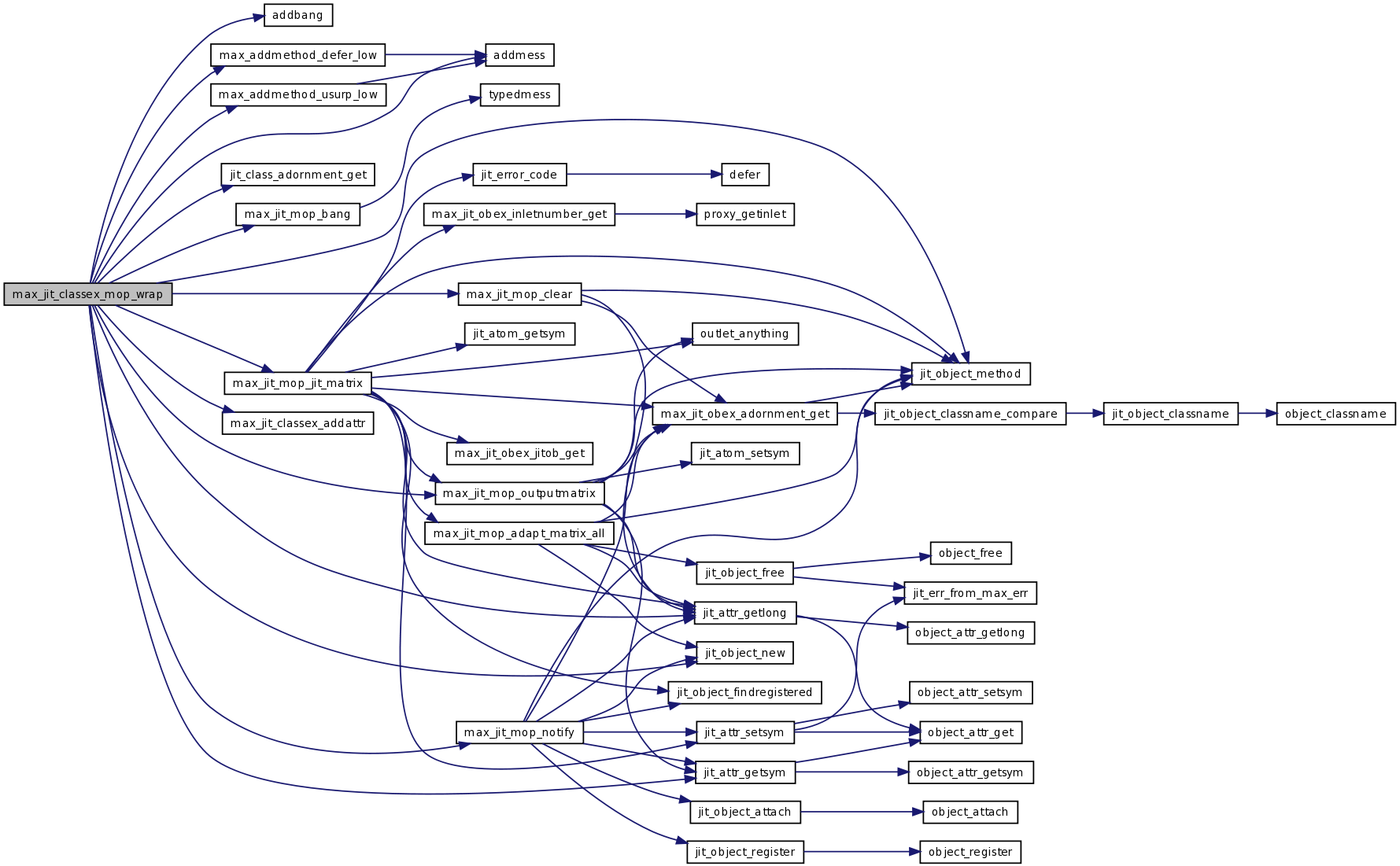

t_jit_err max_jit_classex_mop_wrap	(	void *	mclass,
		void *	jclass,
		long	flags
	)

Adds default methods and attributes to the MOP Max wrapper class.

Parameters:

	mclass	max jit classex pointer returned from max_jit_classex_setup
	jclass	t_jit_class pointer, typcially returned from jit_class_findbyname
	flags	flags to override default MOP Max wrapper behavior

Returns:

t_jit_err error code

Definition at line 33 of file max.jit.mop.c.

References A_CANT, A_GIMME, addbang(), addmess(), JIT_ATTR_GET_DEFER_LOW, jit_attr_getlong(), jit_attr_getsym(), JIT_ATTR_SET_USURP_LOW, jit_class_adornment_get(), JIT_MATRIX_MAX_DIMCOUNT, jit_object_method(), jit_object_new(), max_addmethod_defer_low(), max_addmethod_usurp_low(), max_jit_classex_addattr(), max_jit_mop_bang(), max_jit_mop_clear(), MAX_JIT_MOP_FLAGS_OWN_ADAPT, MAX_JIT_MOP_FLAGS_OWN_BANG, MAX_JIT_MOP_FLAGS_OWN_CLEAR, MAX_JIT_MOP_FLAGS_OWN_DIM, MAX_JIT_MOP_FLAGS_OWN_JIT_MATRIX, MAX_JIT_MOP_FLAGS_OWN_NAME, MAX_JIT_MOP_FLAGS_OWN_NOTIFY, MAX_JIT_MOP_FLAGS_OWN_OUTPUTMATRIX, MAX_JIT_MOP_FLAGS_OWN_OUTPUTMODE, MAX_JIT_MOP_FLAGS_OWN_PLANECOUNT, MAX_JIT_MOP_FLAGS_OWN_TYPE, max_jit_mop_jit_matrix(), max_jit_mop_notify(), max_jit_mop_outputmatrix(), and t_symbol::s_name.

Here is the call graph for this function:

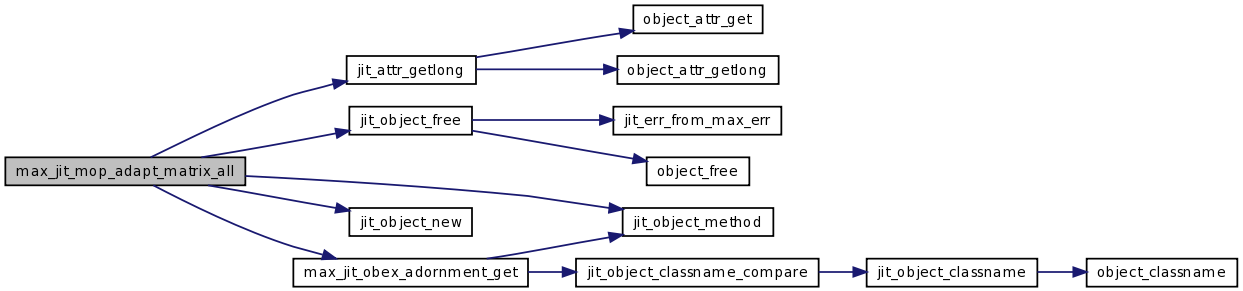

t_jit_err max_jit_mop_adapt_matrix_all	(	void *	x,
		void *	y
	)

Adapts all input and output matrices to matrix specified.

Typically used within the MOP Max Wrapper jit_matrix method for left most input.

Parameters:

	x	Max object pointer
	y	matrix to adapt to

Returns:

t_jit_err error code

Definition at line 1298 of file max.jit.mop.c.

References t_jit_matrix_info::dim, t_jit_matrix_info::dimcount, jit_attr_getlong(), jit_object_free(), jit_object_method(), jit_object_new(), max_jit_obex_adornment_get(), t_jit_matrix_info::planecount, and t_jit_matrix_info::type.

Referenced by max_jit_mop_jit_matrix().

Here is the call graph for this function:

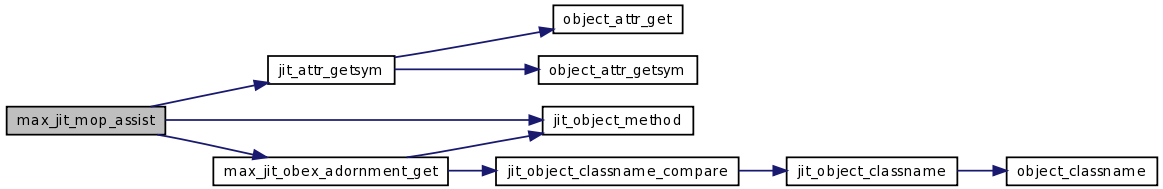

t_jit_err max_jit_mop_assist	(	void *	x,
		void *	b,
		long	m,
		long	a,
		char *	s
	)

Default assist method for a MOP Max wrapper object.

Parameters:

	x	Max object pointer
	b	ignored
	m	inlet or outlet type
	a	index
	s	output string

Returns:

t_jit_err error code

Definition at line 727 of file max.jit.mop.c.

References jit_attr_getsym(), jit_object_method(), and max_jit_obex_adornment_get().

Here is the call graph for this function:

t_jit_err max_jit_mop_bang

(

void *

x

)

Default bang method for a MOP Max wrapper object.

Simply calls the default outputmatrix method.

Parameters:

x

Max object pointer

Returns:

t_jit_err error code

Definition at line 766 of file max.jit.mop.c.

References typedmess().

Referenced by max_jit_classex_mop_wrap().

Here is the call graph for this function:

void max_jit_mop_clear

(

void *

x

)

Default clear method for a MOP Max wrapper object.

Calls the clear method on all input and output matrices.

Parameters:

x

Max object pointer

Returns:

t_jit_err error code

Definition at line 823 of file max.jit.mop.c.

References jit_attr_getlong(), jit_object_method(), and max_jit_obex_adornment_get().

Referenced by max_jit_classex_mop_wrap().

Here is the call graph for this function:

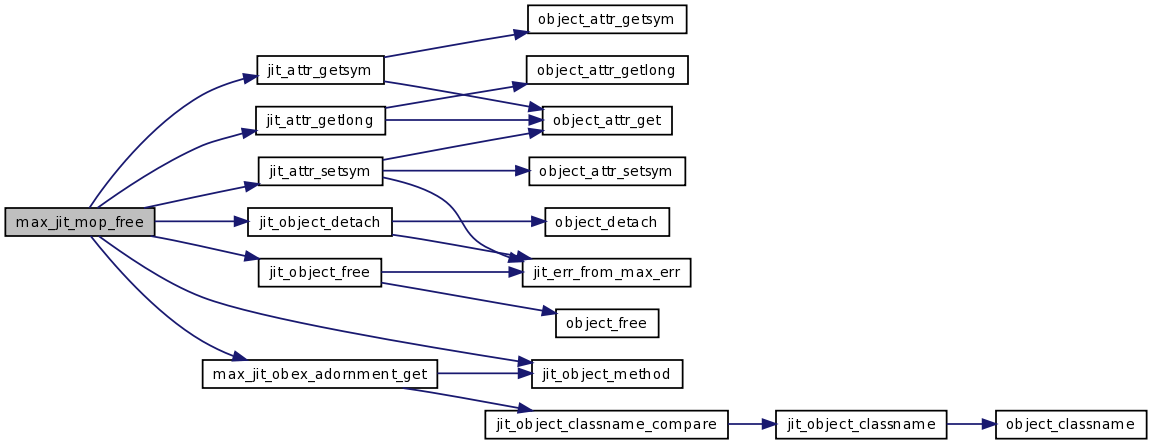

void max_jit_mop_free

(

void *

x

)

Frees additional resources used by a MOP Max wrapper object.

Parameters:

x

Max object pointer

Definition at line 921 of file max.jit.mop.c.

References jit_attr_getlong(), jit_attr_getsym(), jit_attr_setsym(), jit_object_detach(), jit_object_free(), jit_object_method(), and max_jit_obex_adornment_get().

Here is the call graph for this function:

void* max_jit_mop_get_io_by_name	(	void *	x,
		t_symbol *	s
	)

Retrieves t_jit_mop_io object pointer by name.

Parameters:

	x	Max object pointer
	s	input/output name (e.g. in, in2 , out, out2, etc.)

Returns:

t_jit_err error code

Definition at line 1559 of file max.jit.mop.c.

References JIT_MOP_INPUT, JIT_MOP_OUTPUT, jit_object_method(), and max_jit_obex_adornment_get().

Here is the call graph for this function:

void* max_jit_mop_getinput	(	void *	x,
		long	c
	)

Retrieves input t_jit_mop_io object pointer index.

Parameters:

	x	Max object pointer
	c	input index

Returns:

t_jit_err error code

Definition at line 1594 of file max.jit.mop.c.

References jit_object_method(), and max_jit_obex_adornment_get().

Here is the call graph for this function:

void* max_jit_mop_getoutput	(	void *	x,
		long	c
	)

Retrieves output t_jit_mop_io object pointer index.

Parameters:

	x	Max object pointer
	c	output index

Returns:

t_jit_err error code

Definition at line 1615 of file max.jit.mop.c.

References jit_object_method(), and max_jit_obex_adornment_get().

Here is the call graph for this function:

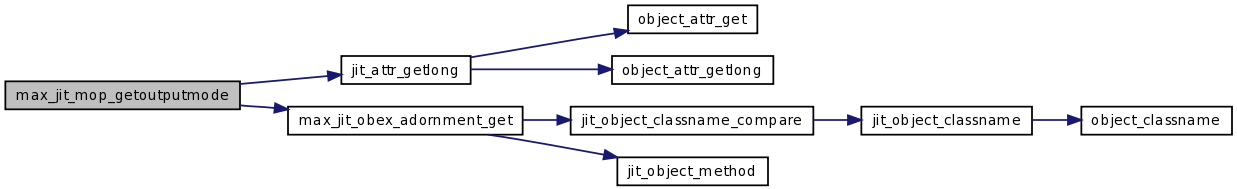

long max_jit_mop_getoutputmode

(

void *

x

)

Retrieves current MOP Max wrapper class output mode.

Parameters:

x

Max object pointer

Returns:

t_jit_err error code

Definition at line 1635 of file max.jit.mop.c.

References jit_attr_getlong(), and max_jit_obex_adornment_get().

Here is the call graph for this function:

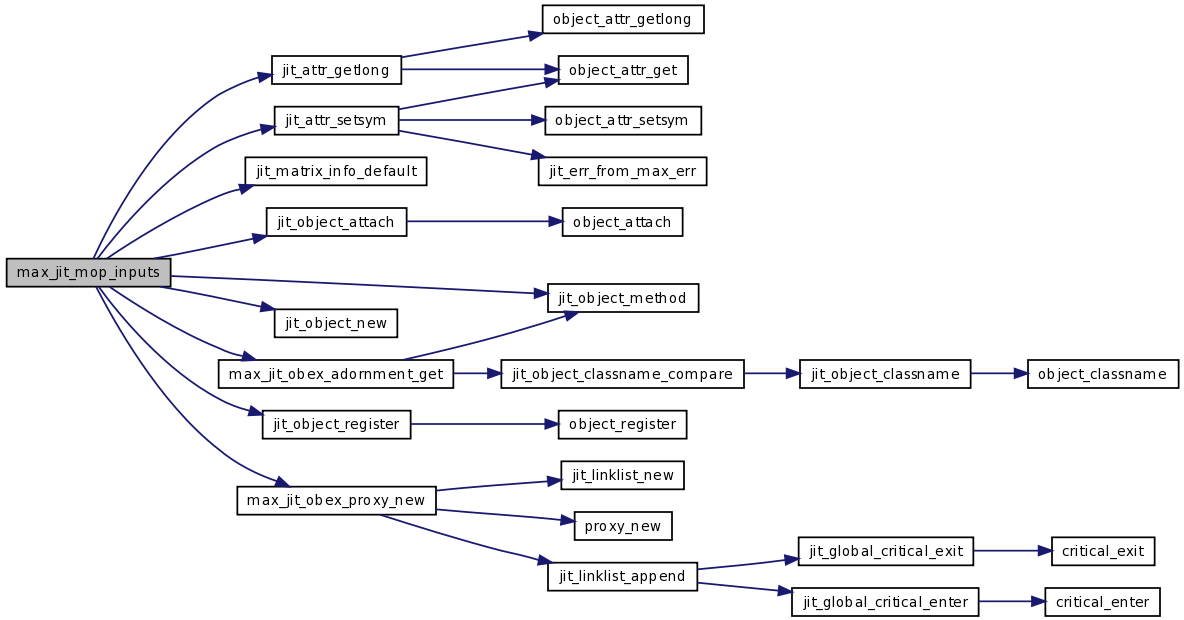

t_jit_err max_jit_mop_inputs

(

void *

x

)

Creates input resources for a MOP Max wrapper object.

Parameters:

x

Max object pointer

Returns:

t_jit_err error code

Definition at line 430 of file max.jit.mop.c.

References jit_attr_getlong(), jit_attr_setsym(), jit_matrix_info_default(), jit_object_attach(), jit_object_method(), jit_object_new(), jit_object_register(), max_jit_obex_adornment_get(), and max_jit_obex_proxy_new().

Referenced by max_jit_mop_setup_simple().

Here is the call graph for this function:

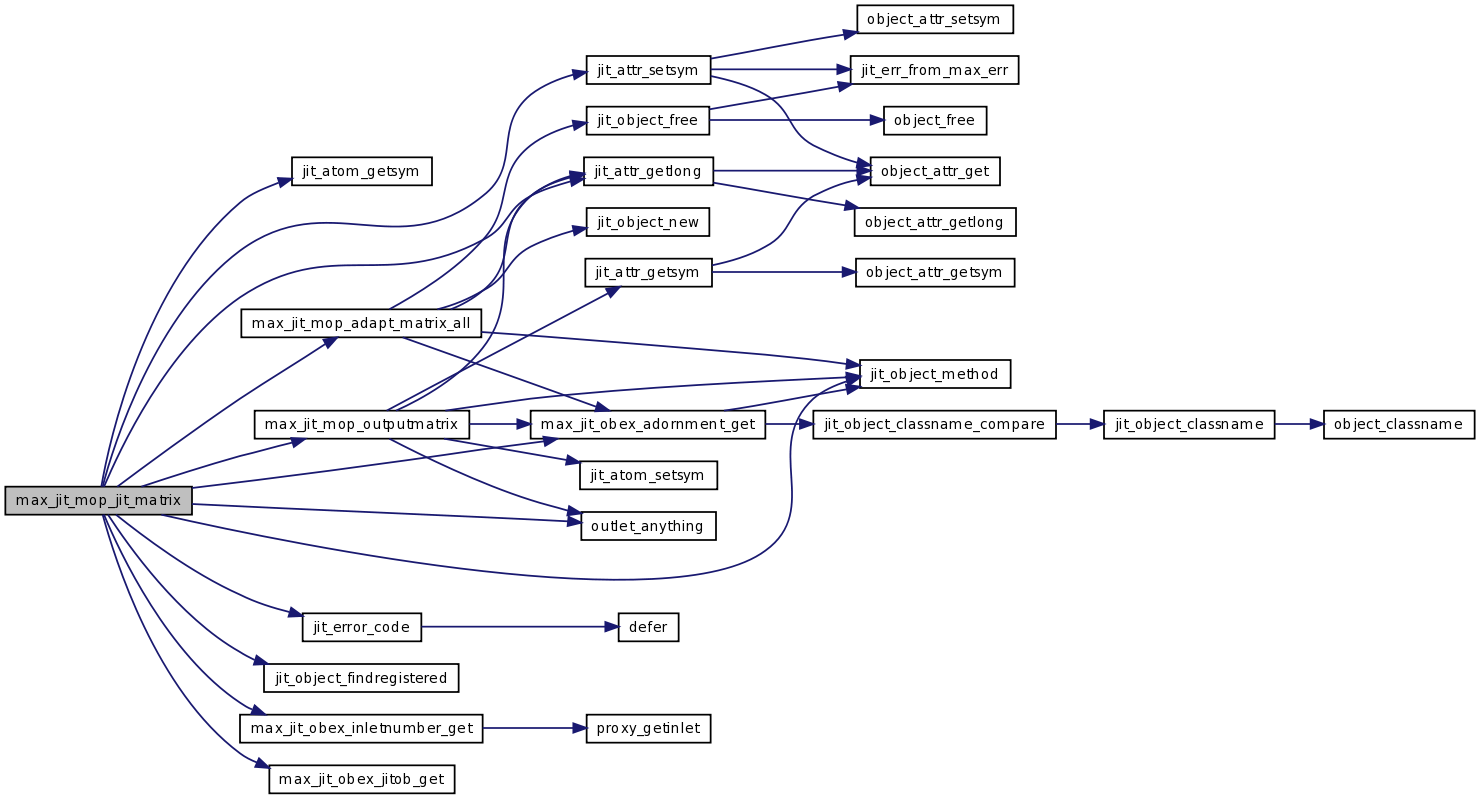

t_jit_err max_jit_mop_jit_matrix	(	void *	x,
		t_symbol *	s,
		long	argc,
		t_atom *	argv
	)

Default jit_matrix method for a MOP Max wrapper object.

Parameters:

	x	Max object pointer
	s	message symbol ("jit_matrix")
	argc	argument count
	argv	argument vector

Returns:

t_jit_err error code

Definition at line 630 of file max.jit.mop.c.

References jit_atom_getsym(), jit_attr_getlong(), jit_attr_setsym(), jit_error_code(), jit_object_findregistered(), jit_object_method(), max_jit_mop_adapt_matrix_all(), max_jit_mop_outputmatrix(), max_jit_obex_adornment_get(), max_jit_obex_inletnumber_get(), max_jit_obex_jitob_get(), and outlet_anything().

Referenced by max_jit_classex_mop_wrap().

Here is the call graph for this function:

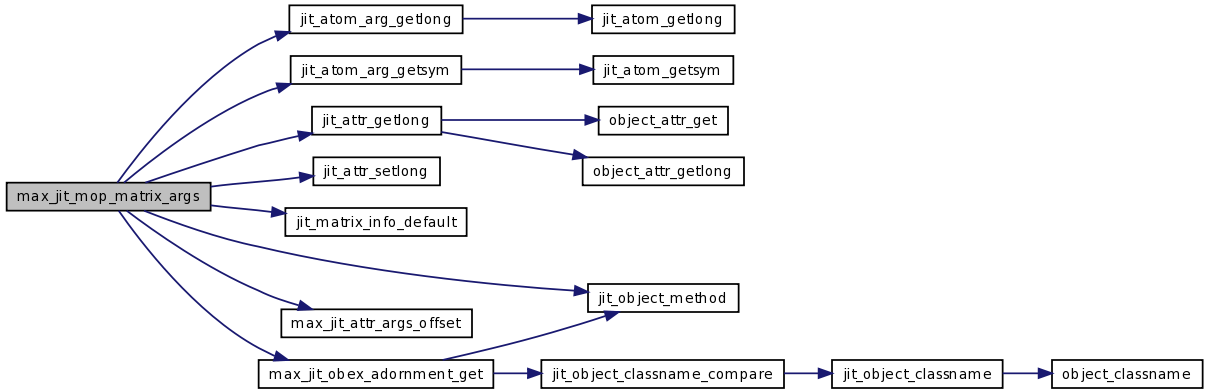

t_jit_err max_jit_mop_matrix_args	(	void *	x,
		long	argc,
		t_atom *	argv
	)

Process matrix arguments for a MOP Max wrapper object.

Parameters:

	x	Max object pointer
	argc	argument count
	argv	argument vector

Returns:

t_jit_err error code

Definition at line 536 of file max.jit.mop.c.

References t_jit_matrix_info::dim, t_jit_matrix_info::dimcount, jit_atom_arg_getlong(), jit_atom_arg_getsym(), jit_attr_getlong(), jit_attr_setlong(), jit_matrix_info_default(), jit_object_method(), max_jit_attr_args_offset(), max_jit_obex_adornment_get(), t_jit_matrix_info::planecount, and t_jit_matrix_info::type.

Referenced by max_jit_mop_setup_simple().

Here is the call graph for this function:

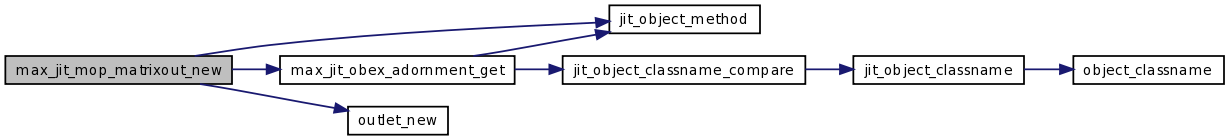

t_jit_err max_jit_mop_matrixout_new	(	void *	x,
		long	c
	)

Creates matrix outlet for a MOP Max wrapper object.

Parameters:

	x	Max object pointer
	c	output index (zero based)

Returns:

t_jit_err error code

Definition at line 508 of file max.jit.mop.c.

References jit_object_method(), max_jit_obex_adornment_get(), and outlet_new().

Referenced by max_jit_mop_outputs().

Here is the call graph for this function:

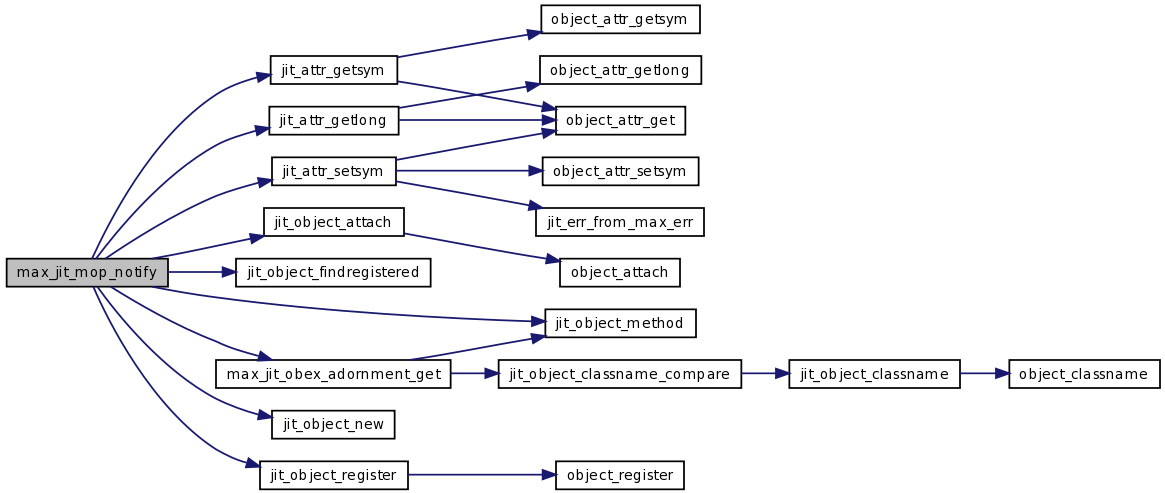

t_jit_err max_jit_mop_notify	(	void *	x,
		t_symbol *	s,
		t_symbol *	msg
	)

Default notify method for a MOP Max wrapper object.

Handles any notification methods from any input and output matrix.

Parameters:

	x	Max object pointer
	s	notifier name
	msg	notification message

Returns:

t_jit_err error code

Definition at line 865 of file max.jit.mop.c.

References jit_attr_getlong(), jit_attr_getsym(), jit_attr_setsym(), jit_object_attach(), jit_object_findregistered(), jit_object_method(), jit_object_new(), jit_object_register(), and max_jit_obex_adornment_get().

Referenced by max_jit_classex_mop_wrap().

Here is the call graph for this function:

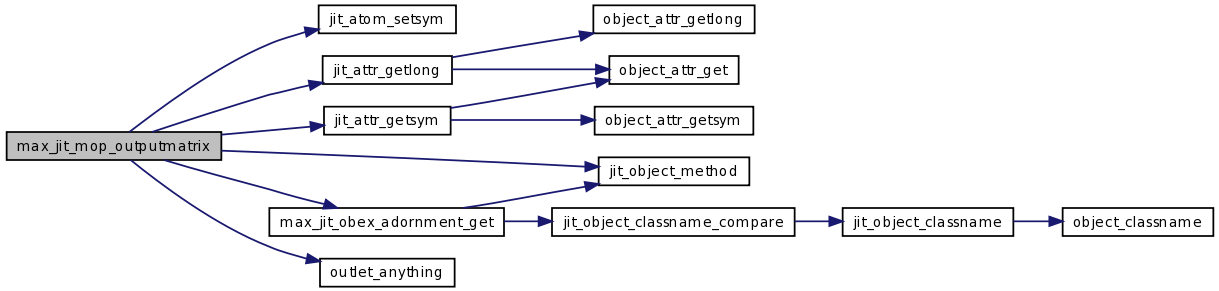

t_jit_err max_jit_mop_outputmatrix

(

void *

x

)

Default outputmatrix method for a MOP Max wrapper object.

Calculates and outputs according to the MOP outputmode attribute.

Parameters:

x

Max object pointer

Returns:

t_jit_err error code

Definition at line 784 of file max.jit.mop.c.

References jit_atom_setsym(), jit_attr_getlong(), jit_attr_getsym(), jit_object_method(), max_jit_obex_adornment_get(), and outlet_anything().

Referenced by max_jit_classex_mop_wrap(), and max_jit_mop_jit_matrix().

Here is the call graph for this function:

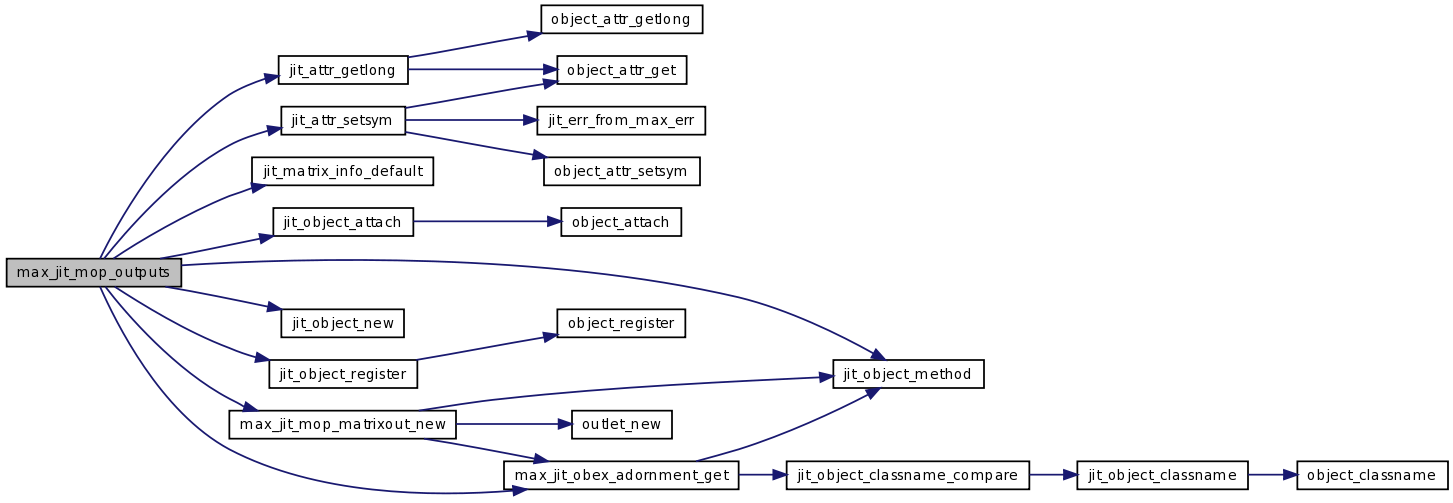

t_jit_err max_jit_mop_outputs

(

void *

x

)

Creates output resources for a MOP Max wrapper object.

Parameters:

x

Max object pointer

Returns:

t_jit_err error code

Definition at line 468 of file max.jit.mop.c.

References jit_attr_getlong(), jit_attr_setsym(), jit_matrix_info_default(), jit_object_attach(), jit_object_method(), jit_object_new(), jit_object_register(), max_jit_mop_matrixout_new(), and max_jit_obex_adornment_get().

Referenced by max_jit_mop_setup_simple().

Here is the call graph for this function:

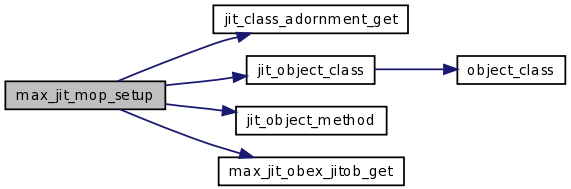

t_jit_err max_jit_mop_setup

(

void *

x

)

Sets up necessary resources for MOP Max wrapper object.

Parameters:

x

Max object pointer

Returns:

t_jit_err error code

Definition at line 363 of file max.jit.mop.c.

References jit_class_adornment_get(), jit_object_class(), jit_object_method(), and max_jit_obex_jitob_get().

Referenced by max_jit_mop_setup_simple().

Here is the call graph for this function:

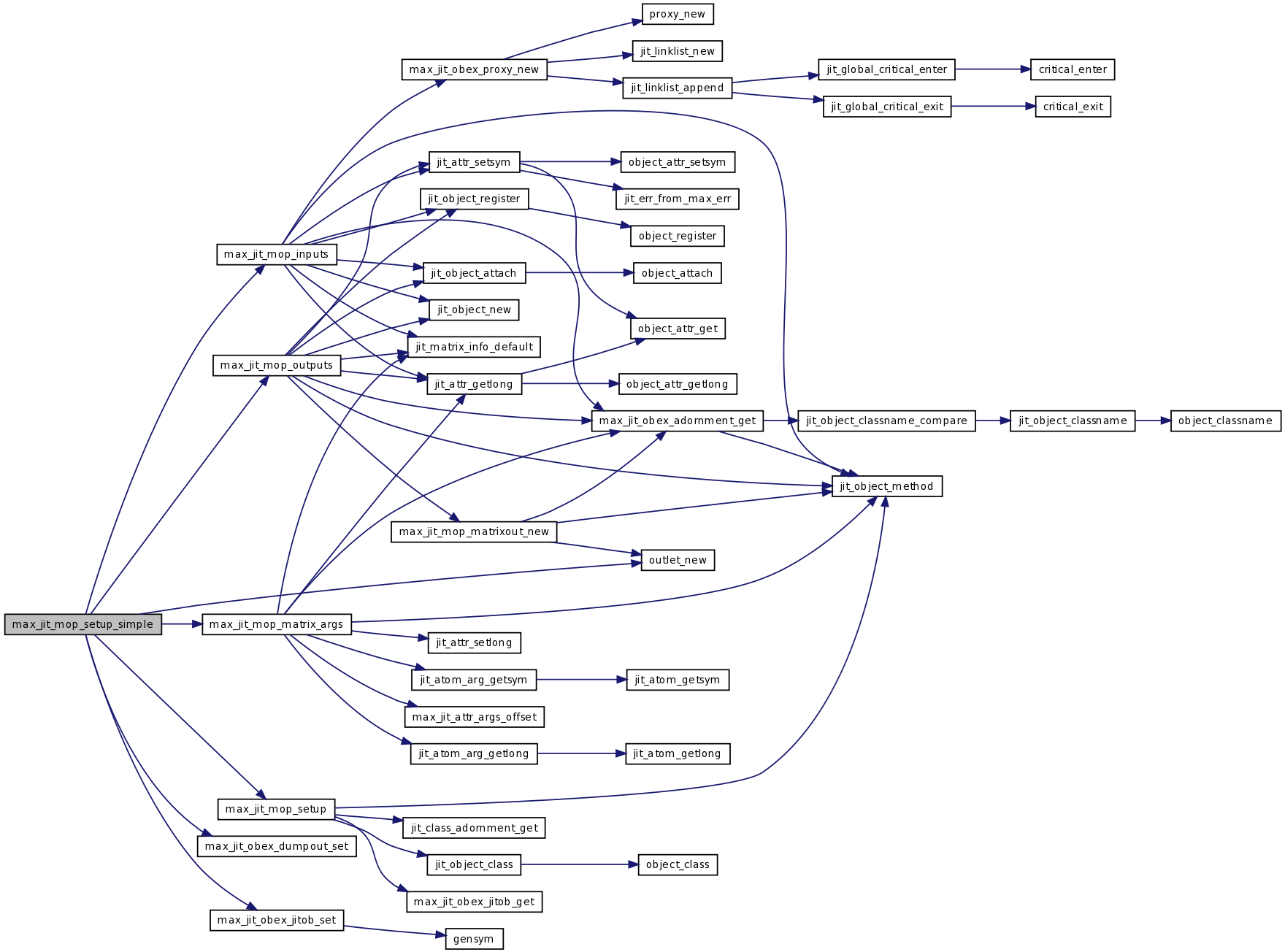

t_jit_err max_jit_mop_setup_simple	(	void *	x,
		void *	o,
		long	argc,
		t_atom *	argv
	)

Initializes default state and resources for MOP Max wrapper class.

Parameters:

	x	Max object pointer
	o	Jitter object pointer
	argc	argument count
	argv	argument vector

Returns:

t_jit_err error code

    max_jit_obex_jitob_set(x,o);
    max_jit_obex_dumpout_set(x,outlet_new(x,NULL));
    max_jit_mop_setup(x);
    max_jit_mop_inputs(x);
    max_jit_mop_outputs(x);
    max_jit_mop_matrix_args(x,argc,argv);

    return JIT_ERR_NONE;

Definition at line 1683 of file max.jit.mop.c.

References max_jit_mop_inputs(), max_jit_mop_matrix_args(), max_jit_mop_outputs(), max_jit_mop_setup(), max_jit_obex_dumpout_set(), max_jit_obex_jitob_set(), and outlet_new().

Here is the call graph for this function:

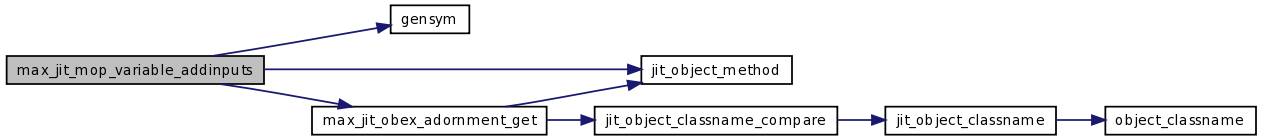

t_jit_err max_jit_mop_variable_addinputs	(	void *	x,
		long	c
	)

Sets the number of inputs for a variable input MOP Max wrapper object.

Parameters:

	x	Max object pointer
	c	inlet count

Returns:

t_jit_err error code

Definition at line 386 of file max.jit.mop.c.

References gensym(), jit_object_method(), and max_jit_obex_adornment_get().

Here is the call graph for this function:

t_jit_err max_jit_mop_variable_addoutputs	(	void *	x,
		long	c
	)

Sets the number of outputs for a variable input MOP Max wrapper object.

Parameters:

	x	Max object pointer
	c	inlet count

Returns:

t_jit_err error code

Definition at line 408 of file max.jit.mop.c.

References gensym(), jit_object_method(), and max_jit_obex_adornment_get().

Here is the call graph for this function:
