Class Module
[Jitter]

Collaboration diagram for Class Module:

Functions
void *	jit_class_new (char *name, method mnew, method mfree, long size,...)
	Creates a new class with the name specified by the name argument.
t_jit_err	jit_class_addmethod (void c, method m, char name,...)
	Adds a named method to a class.
t_jit_err	jit_class_addattr (void c, t_jit_object attr)
	Adds an attribute to a class.
t_jit_err	jit_class_addadornment (void c, t_jit_object o)
	Adds an adornment to a class.
void *	jit_class_adornment_get (void c, t_symbol classname)
	Retrieves an adornment from a class.
t_jit_err	jit_class_free (void *c)
	Frees a class.
t_symbol *	jit_class_nameget (void *c)
	Retrieves the name of a class.
long	jit_class_symcompare (void c, t_symbol name)
	Compares name of class with the name provided.
t_jit_err	jit_class_register (void *c)
	Registers class in the class registry.
method	jit_class_method (void c, t_symbol methodname)
	Retrieves method function pointer for named method.
t_messlist *	jit_class_mess (t_jit_class c, t_symbol methodname)
	Retrieves messlist entry for named method.
void *	jit_class_attr_get (void c, t_symbol attrname)
	Retrieves attribute pointer associated with name provided.
void *	jit_class_findbyname (t_symbol *classname)
	Retrieves class pointer associated with name provided.
t_jit_err	jit_class_addtypedwrapper (void c, method m, char name,...)
	Adds a typed wrapper method to a class.
t_messlist *	jit_class_typedwrapper_get (void c, t_symbol s)
	Retrieves typed wrapper messlist pointer associated with name provided.
t_jit_err	jit_class_method_addargsafe (void c, char argname, char *methodname)
	Marks a method as safe to call as an attribute style argument.
t_symbol *	jit_class_method_argsafe_get (void c, t_symbol s)
	Checks to see if symbol is safe to call as an attribute style argument.

Function Documentation

t_jit_err jit_class_addadornment	(	void *	c,
		t_jit_object *	o
	)

Adds an adornment to a class.

Adornments provide additional state and behavior to a class. This is most commonly used for the jit_mop adornment.

Parameters:

	c	class pointer
	o	object to use as adornment

Returns:: t_jit_err error code

Definition at line 1098 of file jit.foundation.c.

References jit_err_from_max_err().

Here is the call graph for this function:

t_jit_err jit_class_addattr	(	void *	c,
		t_jit_object *	attr
	)

Adds an attribute to a class.

Parameters:

	c	class pointer
	attr	attribute object

Returns:: t_jit_err error code

Definition at line 1077 of file jit.foundation.c.

References class_addattr(), and jit_err_from_max_err().

Referenced by jit_ob3d_setup().

Here is the call graph for this function:

t_jit_err jit_class_addmethod	(	void *	c,
		method	m,
		char *	name,
			...
	)

Adds a named method to a class.

Parameters:

	c	class pointer
	m	function called when method is invoked
	name	method name
	...	type signature for the method in the standard Max type list format (see Chapter 3 of the Writing Externals in Max document for more information)

Returns:: t_jit_err error code

Definition at line 1059 of file jit.foundation.c.

References class_addmethod(), and jit_err_from_max_err().

Referenced by jit_ob3d_setup().

Here is the call graph for this function:

t_jit_err jit_class_addtypedwrapper	(	void *	c,
		method	m,
		char *	name,
			...
	)

Adds a typed wrapper method to a class.

Typed wrappers typically are used when there is an existing private, untyped method defined for a Jitter class, but it is desirable to expose the method to language bindings which require a typed interface--e.g. Java or JavaScript.

Parameters:

	c	class pointer
	m	function called when method is invoked
	name	method name
	...	type signature for the method in the standard Max type list format (see Chapter 3 of the Writing Externals in Max document for more information)

Returns:: t_jit_err error code

Definition at line 1311 of file jit.foundation.c.

References jit_err_from_max_err().

Here is the call graph for this function:

void* jit_class_adornment_get	(	void *	c,
		t_symbol *	classname
	)

Retrieves an adornment from a class.

Adornments provide additional state and behavior to a class. This is most commonly used for the jit_mop adornment.

Parameters:

	c	class pointer
	classname	classname of adornment to retrieve

Returns:: t_jit_err error code

Definition at line 1135 of file jit.foundation.c.

Referenced by max_jit_classex_mop_mproc(), max_jit_classex_mop_wrap(), and max_jit_mop_setup().

void* jit_class_attr_get	(	void *	c,
		t_symbol *	attrname
	)

Retrieves attribute pointer associated with name provided.

Parameters:

	c	class pointer
	attrname	attribute name

Returns:: attribute object pointer

Definition at line 1272 of file jit.foundation.c.

void* jit_class_findbyname ( t_symbol * classname )

Retrieves class pointer associated with name provided.

Parameters:

classname

class name

Returns:: class pointer

Definition at line 1287 of file jit.foundation.c.

References class_findbyname().

Here is the call graph for this function:

t_jit_err jit_class_free ( void * c )

Frees a class.

Warning:: This function is not typically used outside of jitlib.

Parameters:

c

class pointer

Returns:: t_jit_err error code

Definition at line 1152 of file jit.foundation.c.

References class_free(), and jit_err_from_max_err().

Here is the call graph for this function:

t_messlist* jit_class_mess	(	t_jit_class *	c,
		t_symbol *	methodname
	)

Retrieves messlist entry for named method.

Parameters:

	c	class pointer
	methodname	method name

Returns:: t_messlist pointer.

Definition at line 1234 of file jit.foundation.c.

method jit_class_method	(	void *	c,
		t_symbol *	methodname
	)

Retrieves method function pointer for named method.

Parameters:

	c	class pointer
	methodname	method name

Returns:: method function pointer.

Definition at line 1218 of file jit.foundation.c.

t_jit_err jit_class_method_addargsafe	(	void *	c,
		char *	argname,
		char *	methodname
	)

Marks a method as safe to call as an attribute style argument.

Warning:: It is important that no argument settable method causes any output into the patcher, or else it could lead to a crash, or other undesired behavior.

Parameters:

	c	class pointer
	argname	name as used via argument
	methodname	name of method to map the argument name to

Returns:: t_jit_err error code

Definition at line 1353 of file jit.foundation.c.

References gensym(), and jit_err_from_max_err().

Here is the call graph for this function:

t_symbol* jit_class_method_argsafe_get	(	void *	c,
		t_symbol *	s
	)

Checks to see if symbol is safe to call as an attribute style argument.

Parameters:

	c	class pointer
	s	name as used via argument

Returns:: If successful, name of method to map the argument name to. Otherwise, NULL.

Definition at line 1374 of file jit.foundation.c.

References gensym(), and t_symbol::s_name.

Referenced by jit_object_method_argsafe_get().

Here is the call graph for this function:

t_symbol* jit_class_nameget ( void * c )

Retrieves the name of a class.

Parameters:

c

class pointer

Returns:: t_symbol pointer containing name of class

Definition at line 1169 of file jit.foundation.c.

References class_nameget().

Referenced by jit_class_symcompare().

Here is the call graph for this function:

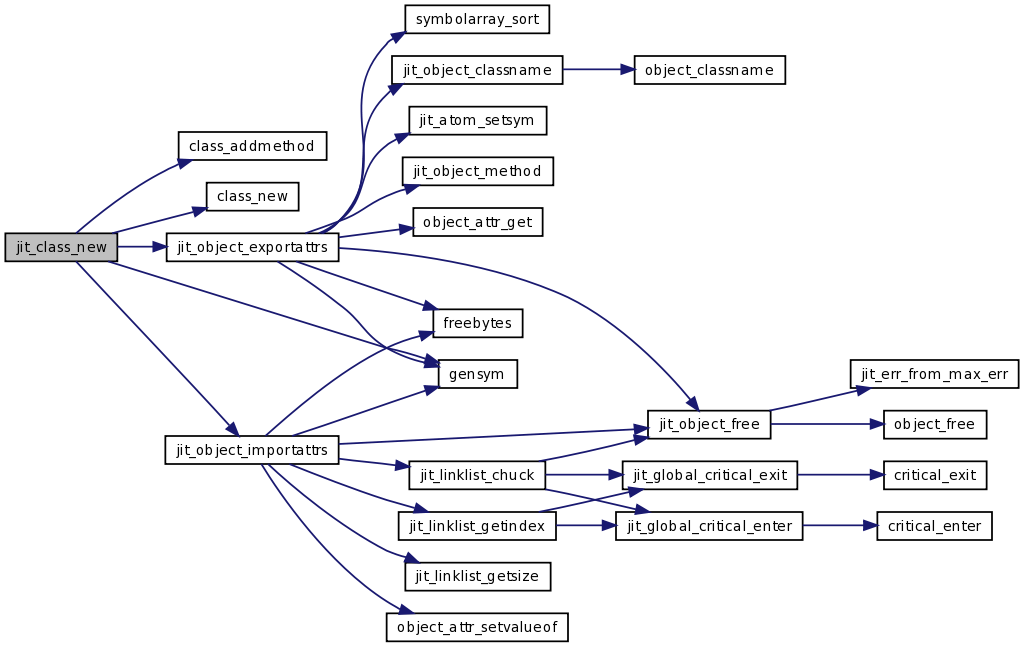

void* jit_class_new	(	char *	name,
		method	mnew,
		method	mfree,
		long	size,
			...
	)

Creates a new class with the name specified by the name argument.

Parameters:

	name	class name
	mnew	class constructor
	mfree	class destructor
	size	object struct size in bytes
	...	type signature for the constructor in the standard Max type list format (see Chapter 3 of the Writing Externals in Max document for more information)

Warning:: In order for the Jitter class to be exposed to JavaScript and Java, it is important that the constructor is typed, even if no arguments are provided--i.e. do not use the older strategy of defining Jitter constructors as private and untyped with A_CANT.
